Through Beam Sensors

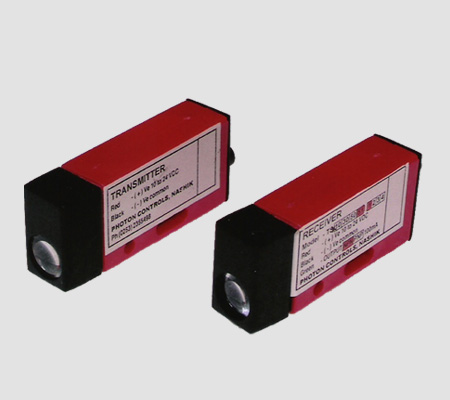

These are widely known as Through Beam Sensors consisting of Transmitter and Receiver. They are mainly used to monitor position of the object.Sensors have built-in amplifier working on 5-30V DC supply. Unit consists of separate transmitter and receiver in separate housing and placed across where object is to be sensed. The advantage in case of switches is amplifier is in separate box and sensor can be miniatures as per the requirement. built-in amplifier working on DC supply. The advantage in case of switches is amplifier is in separate box and sensor can be miniatures as per the requirement. Sensing Range available - 200 mm to 100 meters.
Electronic Switches (I) P. Ltd; offers Through Scan Sensor (Emitter and Receiver type ) in 18 mm dia; Brass or ABS Plastic housing with 3 / 10 /20 / 30 mtr. range. Units operates on 10 - 30 V DC supply. Sensitivity adjustment is available to Transmitter to adjust the range.
Specifications
| Power Supply | 110 / 220 VAC |
| Output | Relay Change Over |
| Contact Rating | 5A at 230 VAC |
| Time Delay | If required |
| Time Delay | 0-30 Sec .var. |
| Sensor Dia | 8/12/18/30mm |
| Sensor Length | 25/35/50 |
| Control Unit | 180x120x60 |
| Housing | Brass/ABS |
Models
| MODEL | RANGE |
| TS 200 | 200mm |
| TS 02 | 02M |
| TS 05 | 05M |
| TS 10 | 10M |
Specifications
| Power Supply | 110/220VAC |
| Output | Relay change over |
| Contact Rating | 2 A@230 VAC |
| Time Delay | If required |
| Time Delay | 0 to 30 Sec. |
| Dimension | 180x120x60 |
| Housing | M.S. |
Models
| MODEL | RANGE |
| TS 10 | 10M |
| TS 20 | 20M |
| TS 50 | 50M |
| TS 100 | 100M |
Specifications
| Type | Bulit in Amplifier |
| Power Supply | 10 to 24 VDC |
| Output | NPN or PNP transistor |
| Current | 100m A |
| Speed | 25/Sec. |
| Status Indicatior | LED |
| Protection | Reverse Polarity |
| Power Pack | For AC Operation |
| Dimension | M 18 x 75L |
| Housing | ABS Plastic/Brass |
Models
| TS 101-TS 104 | 1M |
| TS 301-TS 304 | 3M |
Specifications
| Type | Bulit in Amplifier |
| Power Supply | 10 to 24 VDC |
| Output | NPN or PNP transistor |
| Current | 100m A |
| Speed | 25/Sec. |
| Status Indicatior | LED |
| Power Pack | For AC Mains & rly.oprn |
| Dimension | M 30 x 80L |
| Protection | Reverse Polarity |
Models
| TS 501-TS 504 | 5M |
| TS 511-TS 514 | 10M |
| TS 521-TS 524 | 20M |
Specifications
| Type | Bulit in Amplifier |
| Power Supply | 10 to 24 VDC |
| Output | NPN or PNP transistor |
| Speed | 25/Sec. |
| Current | 100m A |
| Status Indicatior | LED |
| Drop Across Switch | < 1V |
| Dimension | 80x35x17mm |
| Housing | ABS Plastic |
Models
| TSX 301-TSX 304 | 1M |
| TSX 301-TSX 514 | 3M |
| TSX 501-TSX 514 | 5M |
| TSX 511-TSX 514 | 10M |
